IHF Lined fluorine single-stage, single-suction cantilever centrifugal pump Mga tagagawa

Tingnan ang mga produkto Makipag -ugnay sa amin
  • IHF Lined fluorine single-stage, single-suction cantilever centrifugal pump
Fluorine Lined Centrifugal Pump

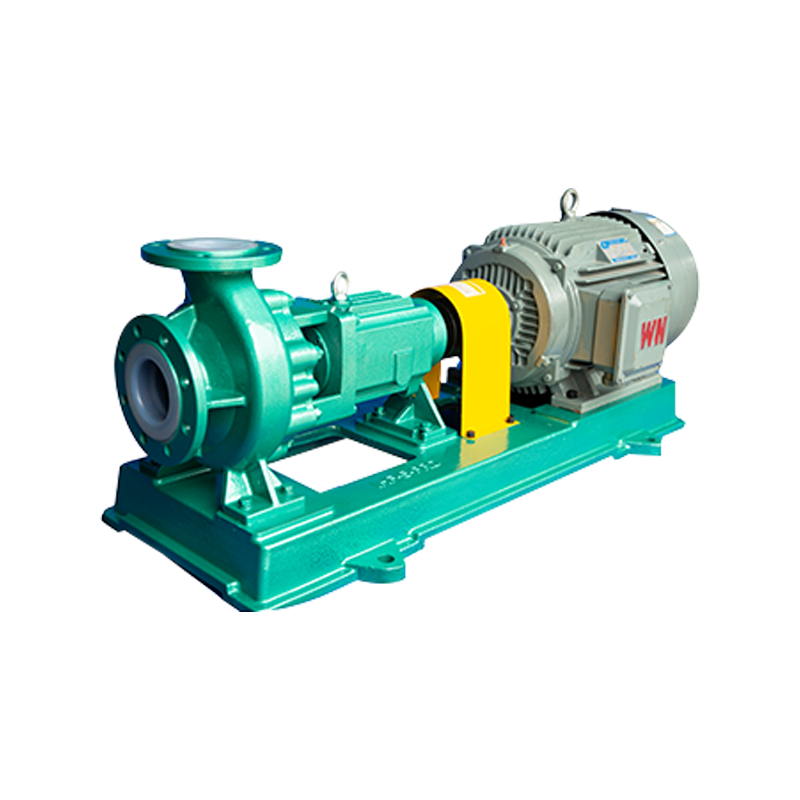

IHF Lined fluorine single-stage, single-suction cantilever centrifugal pump

Naaangkop na temperatura: -20 ° C ~ 150 ° C.

Ang serye ng IHF na fluoroplastic pump ay isang solong yugto, single-suction, cantilever centrifugal pump. Ang bomba ng bomba ay gawa sa isang metal shell na may linya na may fluoroplastic, at ang impeller at pump cover ay gawa sa mga pagsingit ng metal na nakabalot sa fluoroplastic compression paghuhulma. Dinisenyo ayon sa International Standard ISO2858. Ang produktong ito ay may isang makatwirang istraktura at matatag at maaasahang pagganap. Malawak na ginagamit sa mga industriya tulad ng acid pickling, acid at alkali production, spray painting, electrolyte transportasyon sa non-ferrous metal smelting, chlorine water transportasyon sa ion exchange membrane projects, wastewater treatment, electroplating, pesticides, atbp sa paggawa ng sasakyan.

+ Makipag -ugnay sa amin + Pag -download ng katalogo

Paglalarawan ng produkto

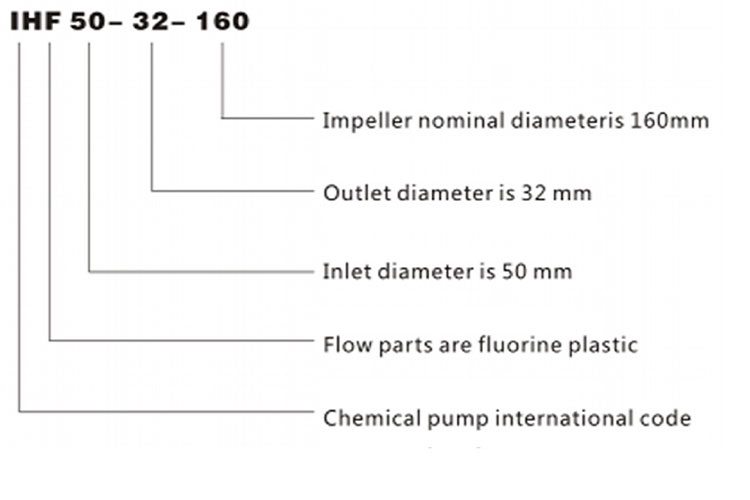

IHF Model Sense & Structure at Material

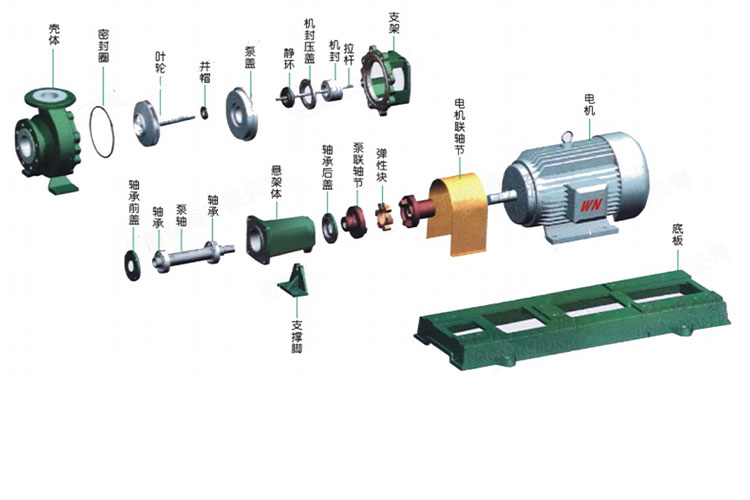

Istraktura at materyal

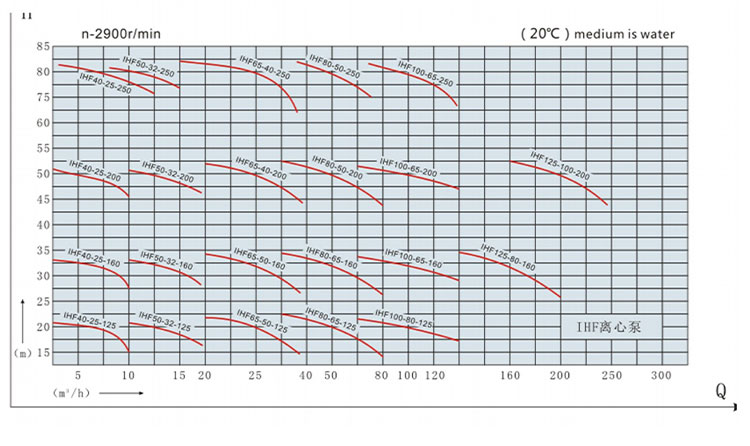

(n = 2900r/min) Pagganap ng curve diagram

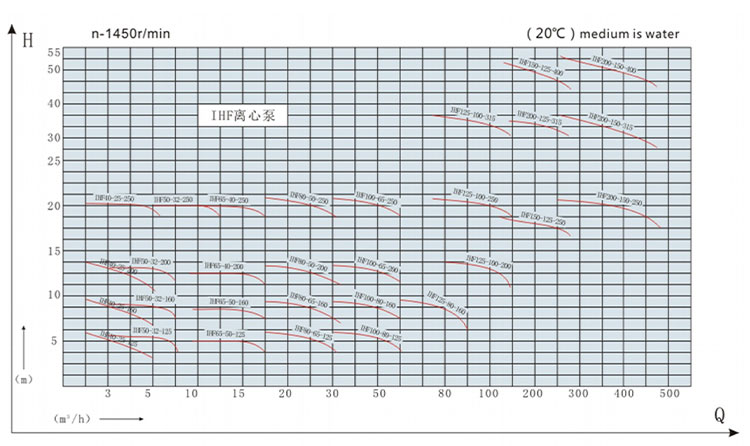

(N-1450R/min) Pagganap ng curve diagram

Modeloo at teknikal na petsa

Talahanayan 1: Nilagyan ng pangalawang motor n = 2900R/min, presyon ng disenyo: 1.6Mpa, "*" ay ang pamantayang parameter.

Bilang Model Daloy
m³/h 		Kapasidad ng pag -aangat Kahusayan NPSH Inlet ×
Outlet 		Kapangyarihan ng motor Timbang
1 IHF25-20-125 2 20.5 25 2.5 25 × 20 1.1 75
*3.2 20 32
5.5 18 46
2 IHF25-20-160 2 33 18 2.5 25 × 20 2.2 85
*3.2 32 25
5.5 30 32
3 IHF25-20-200 2 51 11 3 25 × 20 4 140
*3.2 50 18
6 49 20
4 IHF25-20-250 2 80 12 2.5 25 × 20 7.5 225
*3.6 80 18
5.5 78 26
5 IHF32-20-125 2 20.5 25 2.5 32 × 20 1.1 75
*3.2 20 32
5.5 18 46
6 IHF32-20-160 2 33 18 2.5 32 × 20 2.2 85
*3.2 32 25
2 30 32
7 IHF32-20-200 2 51 11 3 32 × 20 4 140
*3.2 50 18
5.5 49 20
8 IHF32-20-250 2 80 12 2.5 25 × 20 7.5 225
*3.6 80 18
5.5 78 26
9 IHF40-25-125 *6.3 20 30 2.5 40 × 25 1.5 75
8 20 31
10 18 32
10 IHF40-25-160 *6.3 32 30 3 40 × 25 3 124
8 32 31
10 30 32
11 IHF40-25-200 *6.3 50 20 3 40 × 25 5.5 170
8 50 23
10 48 30
12 IHF40-25-250 *6.3 80 20 5 40 × 32 11 255
8 80 24
12 78 34
13 IHF40-32-250 *6.3 80 20 5 40 × 32 11 255
8 80 24
12 78 34
14 IHF50-32-125 7 22 47 3.2 50 × 32 2.2 110
*12.5 20 52
15 16 50
15 IHF50-32-160 7 33 35 3.2 50 × 32 4 135
*12.5 32 47
15 30 47
16 IHF50-32-200 7 51 28 3.2 50 × 32 7.5 180
*12.5 50 40
15 49 48
17 IHF50-32-250 7 80 21 5 50 × 32 11 255
*12.5 80 34
15 77 38
18 IHF65-50-125 15 22 46 3.5 65 × 50 3 135
*25 20 61
35 16 67
19 IHF65-50-160 15 33 45 3.5 65 × 50 5.5 155
*25 32 56
35 30 65
20 IHF65-40-200 15 52 35 3.5 65 × 40 11 210
*25 50 51
35 46 48
21 IHF65-40-250 15 82 33 3.5 65 × 40 18.5 360
*25 80 48
35 72 50
22 IHF65-40-315 15 127 35 4 65 × 40 37 475
*25 125 40
35 112 38
23 IHF80-65-125 35 22 52 4 80 × 65 5.5 195
*50 20 65
60 18 70
24 IHF80-65-160 35 33 60 4 80 × 65 11 228
*50 32 64
60 27 53
25 IHF80-50-200 35 52 55 4 80 × 50 15 250
*50 50 63
60 45 55
26 IHF80-50-250 35 82 48 4.5 80 × 50 30 480
*50 80 56
60 72 50
27 IHF80-50-315 35 127 45 5 80 × 50 45
*50 125 50
60 112 48
28 IHF100-80-125 65 22 62 4.5 100 × 80 11 245
*100 20 65
120 17 68
29 IHF100-80-160 65 35 65 5 100 × 80 15 250
*100 32 70
110 26 65
30 IHF100-65-200 65 51 62 5 100 × 65 30 480
*100 50 68
120 43 56
31 IHF100-65-250 65 82 60 5 100 × 65 45 550
*100 80 65
120 65 70
32 IHF100-65-315 65 127 55 5.5 100 × 65 75 860
*100 125 60
120 112 58
33 IHF125-80-160 100 38 57 5 125 × 80 18.5 460
*160 32 64
180 26 52
34 IHF125-100-200 120 55 63 6 125 × 100 55 660
*200 50 65
220 45 62
35 IHF125-100-250 120 86 54 6 125 × 100 75 850
*200 80 68
210 65 61

Modeloo at teknikal na petsa

Talahanayan 2: Nilagyan ng apat na yugto ng motor n = 1450R/min, presyon ng disenyo: 1.6Mpa, "*" ay ang karaniwang parameter.

Bilang Model Daloy
m³/h 		Pag -aangat ng Kapasidad （M） Kahusayan
Pares 		NPSH
m 		Inlet ×
Outlet 		Kapangyarihan ng motor Timbang
1 IHF40-25-200 2 13 23 3 40 × 25 0.6 80
*3.2 13
4 10
2 IHF40-25-250 *3 20 15 5 40 × 32 1.5 85
4 20 20
6 19.5 30
3 IHF40-32-250 *3 20 15 5 40 × 32 1.5 85
4 20 20
6 19.5 30
4 IHF50-32-125 3.5 4.5 40 3.2 50 × 32 0.55 75
*6.3 5 45
7.5 4 42
5 IHF50-32-160 3.5 9 30 3.2 50 × 32 0.55 95
*6.3 8 40
7.5 7.5 40
6 IHF50-32-200 3.5 12.8 22 3.2 50 × 32 1.1 105
*6.3 12.5 33
7.5 12.3 40
7 IHF50-32-250 3.5 20 15 5 50 × 32 1.5 130
*6.3 20 30
7.5 19.3 32
8 IHF50-32-315 4 26 12 4 50 × 32 4 155
*6.3 25 15
10 22 18
9 IHF65-50-125 7.5 3.8 40 3.5 65 × 50 0.55 82
*12.5 5 55
17.5 4 61
10 IHF65-50-160 7.5 8.8 40 3.5 65 × 50 1.1 95
*12.5 8 51
17.5 7.5 60
11 IHF65-40-200 7.5 13 30 3.5 65 × 40 1.5 115
*12.5 12.5 46
17.5 11.5 42
12 IHF65-40-250 7.5 20.5 28 3.5 65 × 40 3 145
*12.5 20 43
17.5 18 45
13 IHF65-40-315 7.5 32.5 35 4 65 × 40 5.5
*12.5 32 40
17.5 30 38
14 IHF80-65-125 17.5 5.5 50 4 80 × 65 1.1 110
*25 5 64
30 4.5 68
15 IHF80-65-160 17.5 8.3 58 4 80 × 65 1.5 115
*25 8 62
30 6.8 50
16 IHF80-50-200 17.5 13 48 4 80 × 50 2.2 120
*25 12.5 57
30 11.3 48
17 IHF80-50-250 17.5 20.5 43 4.5 80 × 50 5.5 145
*25 20 51
30 11.3 45
18 IHF80-50-315 17.5 32.5 45 5 80 × 50 7.5
*25 32 50
30 30 48
19 IHF100-80-125 32.5 5.5 60 4.5 100 × 80 1.5 130
*50 5 64
60 4.3 65
20 IHF100-80-160 32.5 8.8 62 5 100 × 80 2.2 140
*50 8 69
55 6.5 62
21 IHF100-65-200 32.5 12.8 62 5 100 × 65 5.5 330
*50 12.5 68
60 10.8 56
22 IHF100-65-250 32.5 20.5 60 5 100 × 65 5.5 360
*50 20 65
60 16.3 70
23 IHF100-65-315 32.5 32.5 55 5.5 100 × 65 11
*50 32 60
60 30 58
24 IHF125-80-160 50 9.5 55 5 125 × 80 5.5 305
*80 8 62
90 6.5 50
25 IHF125-100-200 60 13.8 60 6 125 × 100 11 380
*100 12.5 64
110 11.3 60
26 IHF125-100-250 60 21 53 6 125 × 100 15 400
*100 20 69
120 19 71
27 IHF125-100-315 60 32.5 55 6 125 × 100 22 570
*100 32 60
110 30 58
28 1HF150-125-250 120 22 60 5 150 × 125 22 500
*200 20 65
240 18 64
29 IHF150-125-315 120 35 54 5 150 × 125 45 700
*200 32 63
240 30 62
30 IHF200-150-250 240 22 60 5.5 200 × 150 45 700
*400 20 68
480 17 62
31 IHF200-150-315 240 36 55 5.5 200 × 150 75 1180
*400 32 64
480 29 63

I -install ang laki/laki ng flange

Dalawang yugto ng motor 2900R/min, Flange Standard Bilang Hg/T20592-2009, 1.6MPa RF.

Number Modelo Mga sukat ng hitsura at pag -install Na -import na laki ng flange I -export ang laki ng flange
L B S P A W T H h f 4-φd C a b e n-φd k g i j n-φt
1 IHF25-20-125 715 720 500 110 70 295 250 297 172 80 4-φ20 25 115 85 18 4-φ14 20 105 75 18 4-M12
2 IHF25-20-160 815 720 500 110 80 295 250 352 192 80 25 115 85 18 20 105 75 18
3 IHF25-20-200 970 1000 650 170 89 395 330 440 260 80 4-φ25 25 115 85 18 20 105 75 18
4 IHF25-20-250 1032 1000 660 170 90 450 400 460 280 80 25 115 85 18 20 105 75 18
5 IHF32-20-125 715 720 500 110 70 295 250 297 172 80 4-φ20 32 140 100 18 4-φ18 20 105 75 18
6 IHF32-20-200 970 1000 650 170 89 395 330 440 260 80 4-φ25 32 140 100 18 20 105 75 18
IHF40-25-125 740 720 500 110 70 295 250 297 172 80 40 150 110 20 4-M16 25 115 85 18
8 IHF40-25-160 1025 950 590 150 80 395 330 392 232 100 40 150 110 20 25 115 85 18
9 IHF40-25-200 1075 990 650 170 80 450 380 440 260 100 40 150 110 20 25 115 85 18
10 IHF40-32-250 1200 1130 720 205 95 485 435 480 280 100 40 150 110 20 32 140 100 18 4-M16
15 IHF65-50-125 995 950 590 150 80 395 330 352 212 80 65 185 145 20 8-φ18 50 165 125 20
16 IHF65-50-160 1075 990 650 170 80 450 380 392 232 80 65 185 145 20 50 165 125 20
17 IHF65-40-200 1180 1130 720 205 95 485 435 440 260 100 65 185 145 20 40 150 110 18
18 IHF65-40-250 1350 1270 840 215 100 490 440 505 280 100 65 185 145 20 40 150 110 18
19 IHF65-40-315 1495 990 940 245 115 610 550 595 345 100 4-φ28 65 185 145 20 40 150 110 18
20 IHF80-65-125 1095 130 650 170 80 450 380 392 232 100 4-φ25 80 200 160 20 65 185 145 8-M16
21 IHF80-65-160 1180 1150 720 205 95 485 435 440 260 100 80 200 160 20 65 185 145
22 IHF80-50-200 1180 1150 720 205 95 485 435 460 260 100 80 200 160 20 50 165 125 20 4-M16
23 IHF80-50-250 1543 1420 920 240 98 610 530 505 280 125 80 200 160 20 50 165 125 20
24 IHF80-50-315 1566 1430 940 245 115 610 550 625 345 125 80 200 160 20 50 165 125 20
25 IHF100-80-125 1180 1130 720 205 95 485 435 440 260 100 100 220 180 22 80 200 160 20 8-M16
26 IHF100-80-160 1180 1130 720 205 95 485 435 500 280 100 100 220 180 22 8-M16 80 200 160 20
27 IHF100-65-200 1543 1420 920 240 95 610 530 505 280 100 100 220 180 22 8-φ18 65 185 145 20
28 IHF100-65-250 1657 1500 1055 220 95 660 600 595 345 125 4-φ28 100 220 180 22 65 185 145 20
29 IHF100-65-315 1775 1800 1200 300 140 730 670 685 405 125 100 220 180 22 65 185 145 20
30 IHF125-80-160 1543 1420 920 240 95 610 530 505 280 125 4-φ25 125 250 210 22 80 200 160 20
31 IHF125-100-200 1690 [1620 1055 280 110 660 600 650 370 125 4-φ28 125 250 210 22 8-M16 100 220 180 20
32 IHF125-100-250 [1780 [1800 1200 300 140 730 670 685 405 140 125 250 210 22 100 220 180 20

I -install ang laki/laki ng flange

Apat na yugto ng motor 1450R/min, Flange Standard Bilang Hg/T20592-2009, 1.6MPa RF.

Number Modelo Mga sukat ng hitsura at pag -install Na -import na laki ng flange I -export ang laki ng flange
L B S P A W T H h f 4-φd C a b e n-φd k g i j n-φt
1 IHF40-25-250 945 920 590 150 80 395 330 480 280 100 4-φ25 40 150 110 20 4-M16 25 115 85 18 4-M12
2 IHF40-32-250 945 920 590 150 80 395 330 480 280 100 40 150 110 20 4-M16 32 140 100 18 4-M16
3 IHF50-32-125 900 820 540 140 80 395 330 352 212 80 50 165 125 20 4-φ18 32 140 100 18
4 IHF50-32-160 900 820 540 140 80 395 330 392 232 80 50 165 125 20 4-φ18 32 140 100 18
5 IHF50-32-200 925 820 540 140 80 395 330 440 260 80 50 165 125 20 4-φ18 32 140 100 18
6 IHF50-32-250 945 920 600 155 80 390 350 480 280 100 50 165 125 20 4-φ18 32 140 100 18
7 IHF50-32-315 1220 1150 650 250 90 480 420 565 325 140 50 165 125 20 4-φ18 32 140 100 18
8 IHF65-50-125 900 820 540 140 80 360 320 352 212 80 65 185 145 20 8-φ18 50 165 125 20
9 1HF65-50-160 925 820 540 140 80 360 330 392 232 80 65 185 145 20 8-φ18 50 165 125 20
10 IHF65-40-200 945 920 540 155 80 360 330 440 260 100 65 185 145 20 8-φ18 40 150 110 18
11 IHF65-40-250 1130 1000 650 170 95 450 400 505 280 100 65 185 145 20 8-φ18 40 150 110 18
12 IHF80-65-125 925 920 540 140 80 360 330 392 232 100 80 200 160 20 8-φ18 65 185 145 8-M16
13 IHF80-65-160 970 920 600 155 80 390 350 440 260 100 80 200 160 20 8-φ18 65 185 145
14 IHF80-50-200 1015 920 600 155 80 390 350 460 260 100 80 200 160 20 8-φ18 50 165 125 20 4-M16
15 IHF80-50-250 1250 1060 650 200 95 490 440 505 280 125 80 200 160 20 8-φ18 50 165 125 20
16 IHF80-50-315 1216 1200 740 190 100 490 440 625 345 125 4-φ24 80 200 160 20 8-φ18 50 165 125 20
17 IHF100-80-125 970 920 600 155 80 390 350 440 260 100 4-φ25 100 220 180 22 8-φ18 80 200 160 20 8-M16
18 IHF100-80-160 1130 1000 650 170 95 450 400 500 280 100 100 220 180 22 8-M16 80 200 160 20
19 IHF100-65-200 1250 1060 650 200 95 490 435 505 280 100 100 220 180 22 8-φ18 65 185 145 20
20 IHF100-65-250 1220 1250 720 190 125 490 440 550 300 125 100 220 180 22 8-φ18 65 185 145 20
21 IHF100-65-315 1450 1380 900 240 90 560 500 580 300 125 4-φ24 100 220 180 22 8-φ18 65 185 145 20
22 IHF125-80-160 1250 1060 660 200 95 490 440 505 280 125 4-φ25 125 250 210 22 8-φ18 80 200 160 20
23 IHF125-100-200 1355 1270 840 215 95 540 490 650 370 125 4-φ28 125 250 210 8-M16 100 220 180 20
24 IHF125-100-250 1475 1400 940 230 125 560 500 580 300 140 125 250 210 22 8-M16 100 220 180 20
25 IHF125-100-315 1685 1600 800 350 100 520 470 735 420 140 4-φ24 125 250 210 27 8-φ19 100 220 180 24
26 IHF150-125-250 1555 1430 940 245 140 610 550 750 395 140 4-φ28 150 285 240 30 8-φ20 125 245 210 27
27 IHF150-125-315 1662 1600 1060 270 125 660 600 755 400 140 150 285 240 30 8-φ20 125 245 210 27
28 IHF200-150-250 1690 1600 1060 270 125 660 600 775 400 165 200 340 295 33 12-φ 150 285 240 28 8-m20
29 IHF200-150-315 1980 1970 1200 300 140 730 670 840 440 165 200 340 295 33 12-φ 150 285 240 28
