Home / Produkto / Centrifugal Pump / Fluorine Lined Centrifugal Pump / UHB-ZK Corrosion-resistant at wear-resistant mortar pump

UHB-ZK Corrosion-resistant at wear-resistant mortar pump Mga tagagawa

Tingnan ang mga produkto Makipag -ugnay sa amin
  • UHB-ZK Corrosion-resistant at wear-resistant mortar pump
Fluorine Lined Centrifugal Pump

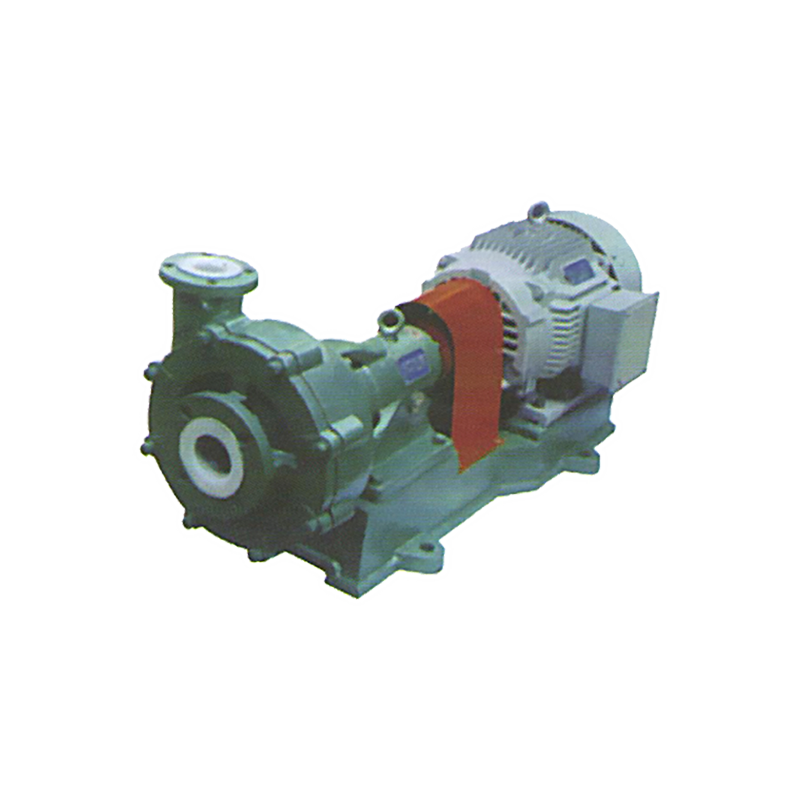

UHB-ZK Corrosion-resistant at wear-resistant mortar pump

Naaangkop na temperatura -20 ℃ -120 ℃

Ang serye ng UHB-ZK na anti-corrosion at anti-wear pump, ang mga bahagi ng daloy ay gawa sa lining ng bakal, isang bagong henerasyon ng anti-corrosion at anti-wear alloy.  Ang bomba ay nagtatakda ng mahusay na paglaban sa pagsusuot, paglaban sa epekto, paglaban ng kaagnasan at mataas na temperatura ng paglaban at iba pang mga natitirang pakinabang sa isa, ang disenyo ay may K-shaped dynamic seal (UHB-ZK), panloob na naka-install na solong end mechanical seal (UHB-ND), panloob na naka-install na dobleng pagtatapos ng mekanikal na selyo (UHB-NS) tatlong istruktura ng sealing, ay maaaring umangkop sa iba't ibang mga kondisyon sa pagtatrabaho.  Lalo na ang angkop para sa paghahatid ng acid, alkalina na likido o slurry;  Lahat ng uri ng kinakaing unti -unting pulp sa industriya ng smelting;  Lahat ng mga uri ng organikong acid, malakas na oxidant, industriya ng proteksyon sa kapaligiran lahat ng uri ng dumi sa alkantarilya, ang saklaw ng aplikasyon ay napakalawak.

+ Makipag -ugnay sa amin + Pag -download ng katalogo

Paglalarawan ng produkto

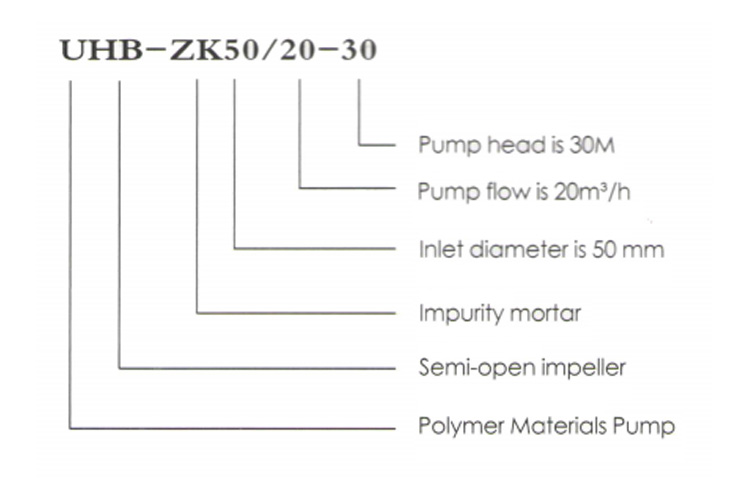

UHB Structure at Materyal at Model Sense

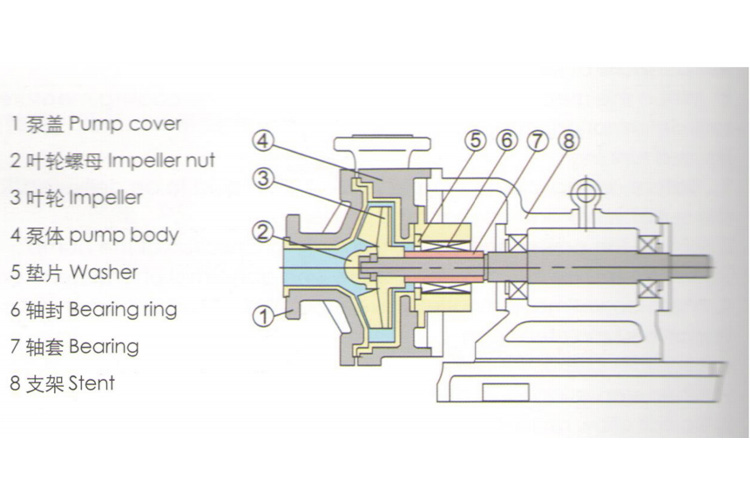

Istraktura at materyal

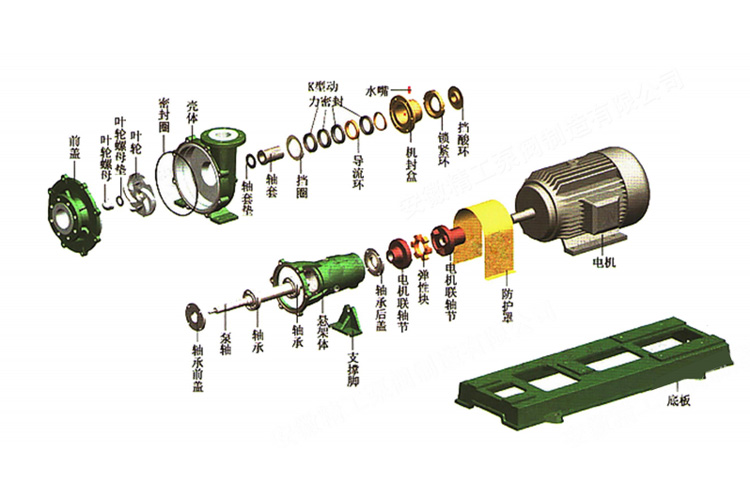

Istraktura at materyal

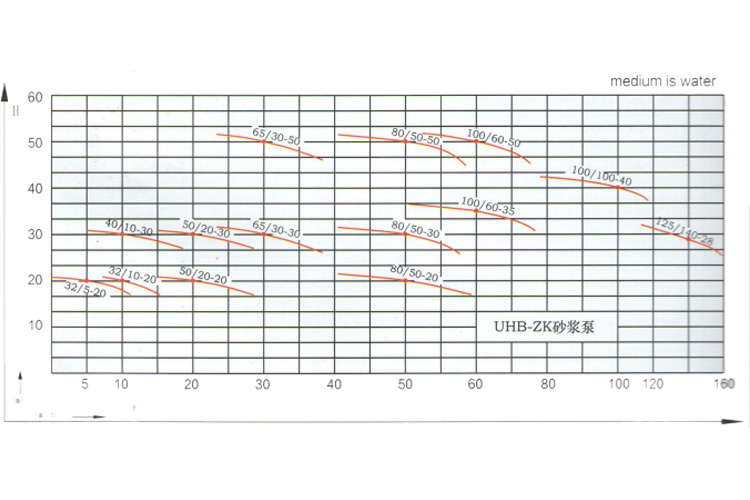

(n = 2900r/min) Pagganap ng curve diagram

Modeloo at teknikal na petsa

Dalawang yugto ng mga parameter ng pagganap ng motor na bilis

Bilang Model Rev = 2900r/min medium density = 1000kg/m³
Daloy
(m³/h) 		Pump Head
(m) 		η
(%) 		Inlet
(mm) 		Outlet
(mm) 		NPSH
(m) 		Kapangyarihan
(KW) 		Timbang
(kg)
1 UHB32-25-125 2 18 Φ32 Φ25 3.0 1.5 95
3.6 20
5 18
2 UHB32-25-160 2 31 13 Φ32 Φ25 3.0 2.2 105
3.6 32
5 30
3 UHB40-32-125 3 22 21 Φ40 Φ32 3.0 2.2 110
6.3 20
8 17
4 UHB40-32-160 3 34 25 Φ40 Φ32 3.0 3 110
6.3 32
8 28
5 UHB50-32-125 7 22 42 Φ50 Φ32 3.0 3 110
12.5 20
15 17
6 UHB50-32-160 7 35 40 Φ50 Φ32 3.0 4 120
12.5 32
15 31
7 UHB50-40-200 15 52 30 Φ50 Φ40 5.0 7.5 170
12.5 50
15 48
8 UHB50-40-250 7 83 30 Φ50 Φ40 5.0 15 220
12.5 80
15 75
9 UHB65-50-125 15 34 53 Φ65 Φ50 3.5 4 130
25 20
35 16
10 UHB65-50-160 15 34 51 Φ65 Φ50 3.5 7.5 145
25 32
35 28
11 UHB65-50-200 15 53 46 Φ65 Φ50 3.5 11 210
25 50
35 47
12 UHB65-50-250 15 84 30 Φ65 Φ50 3.5 22 250
25 80
35 75
13 UHB80-65-125 35 23 56 Φ80 Φ65 4.0 7.5 150
50 20
60 17
14 UHB80-65-160 35 35 55 Φ80 Φ65 4.0 15 180
50 32
60 27
15 UHB80-65-200 35 52 49 Φ80 Φ65 4.0 18.5 265
50 50
60 47
16 UHB80-65-250 35 84 49 Φ80 Φ65 4.0 30 450
50 80
60 75
17 UHB100-80-125 80 21 57 Φ100 Φ80 4.5 15 240
100 20
110 17
18 UHB100-80-160 80 37 60 Φ100 Φ80 4.5 18.5 290
100 32
110 29
19 UHB100-80-200 80 54 56 Φ100 Φ80 5.0 30 440
100 50
110 46
20 UHB125-100-125 120 24 60 Φ125 Φ100 5.5 18.5 480
150 20
180 16
21 UHB125-100-160 120 36 58 Φ125 Φ100 5.5 30 520
150 32
180 25
22 UHB125-100-200 120 44 55 Φ125 Φ100 5.5 37 530
150 40
180 34

Modeloo at teknikal na petsa

Apat na yugto ng mga parameter ng pagganap ng bilis ng motor

Bilang Model Rev = 1450R/min medium density = 1000kg/m³
Daloy
(m³/h) 		Pump Head
(m) 		η
(%) 		Inlet
(mm) 		Outlet
(mm) 		NPSH
(m) 		Kapangyarihan
(KW) 		Timbang
(kg)
1 UHB50-32-125 4 5.5 37 Φ50 Φ32 3.0 0.75 80
6.3 5
8 3.5
2 UHB50-32-160 4 9 35 Φ50 Φ32 3.0 0.75 80
6.3 8
8 6
3 UHB50-40-200 4 23.5 35 Φ50 Φ40 5.0 1.5 115
6.3 12.5
8 11
4 UHB65-50-125 8 5.5 45 Φ65 Φ50 3.5 1.1 110
12.5 5
15 4
5 UHB65-50-160 8 8.5 43 Φ65 Φ50 3.5 1.1 115
12.5 8
15 6
6 UHB65-50-200 8 13.5 39 Φ65 Φ50 3.5 2.2 160
12.5 12.5
15 11
7 UHB65-50-250 8 21 37 Φ65 Φ50 3.5 4 240
12.5 20
15 19
8 UHB65-50-315 8 33 39 Φ65 Φ50 3.5 7.5 270
12.5 32
15 30
9 UHB80-65-125 16 6 48 Φ80 Φ65 4.0 1.5 130
25 5
35 4
10 UHB80-65-160 16 9 53 Φ80 Φ65 4.0 1.5 135
25 8
35 10
11 UHB80-65-200 16 13.5 45 Φ80 Φ65 4.0 3 170
25 12.5
35 10
12 UHB80-65-250 20 21 42 Φ80 Φ65 4.5 5.5 270
25 20
35 18
13 UHB80-65-315 16 34 39 Φ80 Φ65 5.0 11 295
25 32
35 30
14 UHB80-65-400 16 52 35 Φ80 Φ65 5.0 22 480
25 50
35 47
15 UHB100-80-125 35 5.5 52 Φ100 Φ80 5.0 1.5 165
50 5
60 3
16 UHB100-80-160 35 9 55 Φ100 Φ80 5.0 2.2 220
50 8
60 6
17 UHB100-80-200 35 13.5 52 Φ100 Φ80 5.0 4 340
50 12.5
60 10
18 UHB100-80-250 35 21 50 Φ100 Φ80 5.0 7.5 390
50 20
60 18
19 UHB100-80-315 35 33 46 Φ100 Φ80 5.0 15 450
50 32
60 47
20 UHB100-80-400 35 52 42 Φ100 Φ80 5.0 22 520
50 50
60 47
21 UHB125-100-160 70 9 56 Φ125 Φ100 5.0 11 480
100 8
6
22 UHB125-100-200 70 13.5 54 Φ125 Φ100 5.0 15 500
100 12.5
120 11
23 UHB125-100-250 70 21 52 Φ125 Φ100 5.0 18.5 550
100 20
120 18
24 UHB125-100-315 70 33 49 Φ125 Φ100 5.5 30 680
100 32
120 30
25 UHB125-100-400 70 52 46 Φ125 Φ100 5.5 37 720
100 50
120 48
26 UHB150-125-200 140 14 56 Φ150 Φ125 5.5 22 720
200 12.5
240 11
27 UHB150-125-250 140 22 53 Φ150 Φ125 5.5 30 780
200 20
240 18
28 UHB150-125-315 140 34 48 Φ150 Φ125 6.0 45 850
200 32
240 30
29 UHB150-125-400 140 52 43 Φ150 Φ125 6.0 75 1100
200 50
240 47
30 UHB200-150-250 260 23 56 Φ200 Φ150 7.0 55 890
400 20
480 17
31 UHB200-150-315 260 35 59 Φ200 Φ150 7.0 75 1120
400 32
480 30
32 UHB200-150-400 260 53 62 Φ200 Φ150 7.0 110 1480
400 50
480 48
33 UHB250-200-250 500 23 68 Φ200 Φ150 7.5 75 1150
650 20
750 17
34 UHB250-200-315 500 35 66 Φ200 Φ150 7.5 110 1620
650 32
750 27
35 UHB250-200-400A 350 50 62 Φ250 Φ200 7.5 110 1680
500 45
600 35
36 UHB250-200-400 500 55 65 Φ200 Φ150 7.5 132 1880
650 50
750 46
37 UHB300-250-315 800 36 70 Φ300 Φ250 8.0 160 2150
1000 32
1150 27
38 UHB300-250-400 800 55 66 Φ300 Φ250 8.0 250 2800
1000 50
1150 46
39 UHB300-250-500 800 70 65 Φ300 Φ250 7.0 315 3200
1000 60
1150 55

Modeloo at teknikal na petsa

Apat na yugto ng mga parameter ng pagganap ng bilis ng motor

Bilang Model Rev = 980r/min medium density = 1000kg/m³
Daloy
(m³/h) 		Pump Head
(m) 		η
(%) 		Inlet
(mm) 		Outlet
(mm) 		NPSH
(m) 		Kapangyarihan
(KW) 		Timbang
(kg)
1 UHB350-300-500 1400 35 70 Φ350 Φ300 8.0 250 3800
1800 32
2000 30

I -install ang laki/laki ng flange

Bilang Modelo Sa labas at pag -install ng laki Laki ng flange ng inlet Outlet na laki ng flange
L L1 S P f W T H h X D C a b n-φd k g i n-φt
1 UHB32-25-125 827 775 485 185 100 370 320 347 197 74.5 24 32 140 100 4-φ18 25 115 75 4-φ13.5
2 UHB32-25-160 985 880 600 182 102 385 335 408 232 90 24 32 140 100 4-φ18 25 115 75 4-φ13.5
3 UHB40-32-160 985 880 600 182 102 385 335 416 232 93.5 24 40 150 110 4-φ18 32 140 100 4-φ18
4 UHB50-32-160 990 880 600 182 102 385 335 416 232 93.5 24 50 165 125 4-φ18 32 140 100 4-φ18
5 UHB50-40-200 1100 950 650 205 120 435 385 450 240 108 25 50 165 125 4-φ18 40 150 110 4-φ18
6 UHB65-50-160 1100 630 650 200 113 435 385 407 232 95 25 65 185 145 4-φ18 50 165 125 4-φ18
7 UHB65-50-200 1255 1128 740 228 120 500 435 470 260 105 25 65 185 145 4-φ18 50 165 125 4-φ18
8 UHB65-50-250 1340 1190 800 230 130 480 530 585 325 165 25 65 185 145 4-φ18 50 165 125 4-φ18
9 UHB65-50-315 1165 1110 740 230 130 530 480 585 325 165 25 65 185 145 4-φ18 50 165 125 4-φ18
10 UHB80-65-160 1245 1130 740 233 125 500 435 470 260 110 25 80 200 160 8-φ18 65 185 145 4-φ18
11 UHB80-65-200 1320 1140 740 237 130 490 440 480 260 125 25 80 200 160 8-φ18 50 165 125 4-φ18
12 UHB80-65-315 1340 1110 740 250 135 530 480 595 325 170 25 80 200 160 8-φ18 65 185 145 4-φ18
13 UHB100-80-160 1320 1130 740 245 139 500 435 470 260 110 25 100 220 180 8-φ18 80 200 160 8-φ18
14 UHB100-80-200 1495 1350 945 264 130 590 535 530 300 125 25 100 220 180 8-φ18 80 200 160 8-φ18
15 UHB100-80-315 1400 1350 940 264 144 540 490 630 350 160 25 100 220 180 8-φ18 80 200 160 8-φ18
16 UHB125-100-315 1830 1500 940 468 328 620 550 760 440 190 25 125 250 210 8-φ18 100 220 180 8-φ18
17 UHB125-100-400 1830 1500 940 475 335 620 550 910 475 223 25 125 250 210 8-φ18 100 220 180 8-φ18
18 UHB150-125-315 1950 1500 940 496 356 620 550 945 475 223 25 150 285 240 8-φ18 125 250 210 8-φ18
19 UHB150-125-400 2070 1620 1060 522 362 670 600 1012 510 270 28 150 285 240 8-φ18 125 250 210 8-φ18
20 UHB200-150-315 2070 1620 1060 528 368 670 600 1022 510 270 28 200 340 295 12-φ22 150 285 240 8-φ18
21 UHB200-150-400 2338 1890 1240 528 368 790 720 1042 530 270 36 200 340 295 12-φ22 150 285 240 8-φ18
22 UHB250-200-400 2420 1890 1240 535 375 790 720 1102 580 305 36 250 405 355 12-φ22 200 340 295 12-φ22
23 UHB300-250-315 2470 1890 1240 510 352 790 720 1102 580 285 36 300 460 410 12-φ22 250 405 355 12-φ22
24 UHB300-250-500 2720 2090 1500 515 360 820 750 1182 620 325 36 300 460 410 12-φ22 250 405 355 12-φ22
25 UHB350-300-500 2770 2150 1550 516 380 840 770 1314 700 380 36 350 520 410 16-φ26 300 460 410 12-φ22
+ Unawain ang detalyadong mga parameter ng produkto
